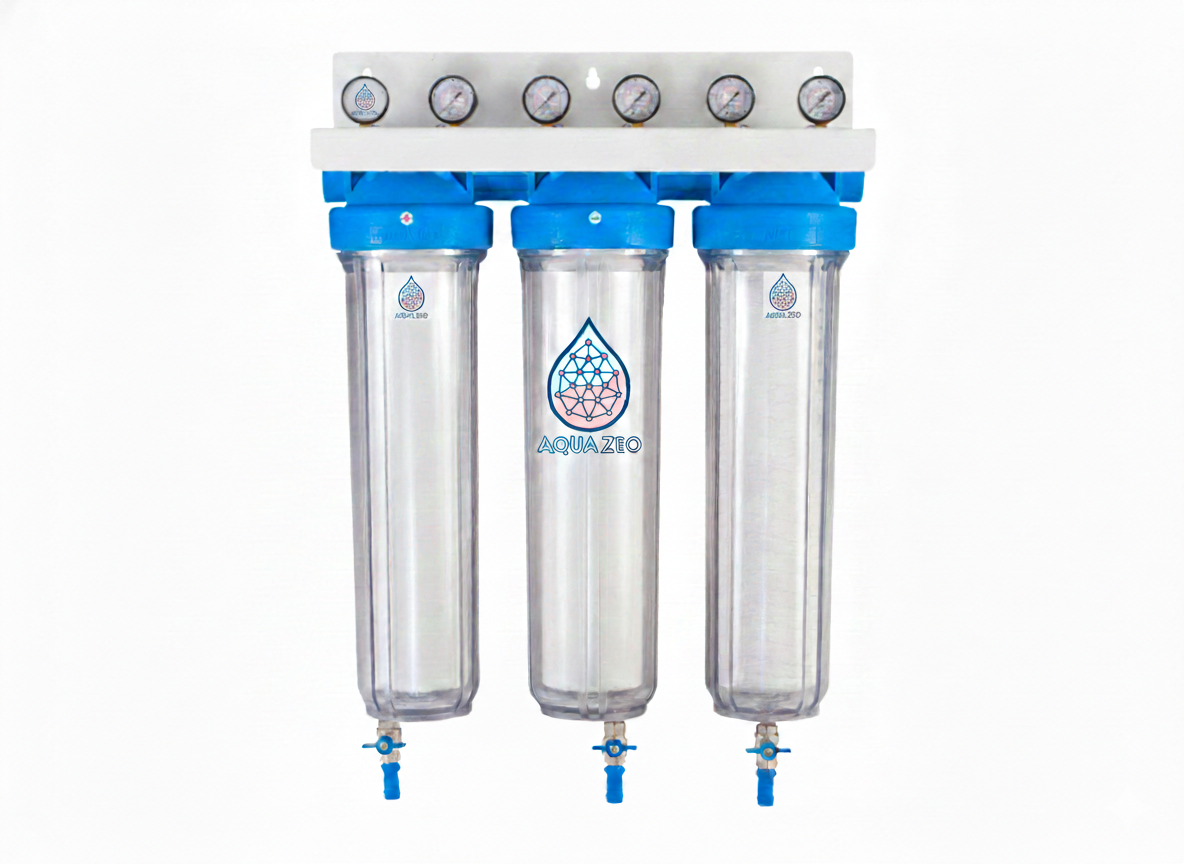

AquaZeo Trio Filter System

RECOMMENDED USES

This version of the AquaZeo Filter System is designed for POE (point of entry) installation in the home. This system typically addresses higher contamination concerns filtration. It utilizes a “pre” or “post” cartridge for sediment; in areas of specific concerns, we recommend a second specific zeolite cartridge to address the greater contamination concern. Households of 2–6 persons, 2+ bath, using 375 gallons a day or more. Appropriate for “high contamination” or a desire to extend the life between replacements.

ESTIMATED FILTER CARTRIDGE LIFE

• Standard contamination negative (-) cartridge: 400,000 gallons (3 years @ 375 gal/day)
• Standard contamination positive (+) cartridge: 800,000 gallons (6 years @ 375 gal/day)
• Actual cartridge life will vary based on your containment level and water usage.
• Pre and Post cartridges will need to be replaced based on need

SPECS AND FEATURES

These durable units feature cartridge housings filled with AquAmerica’s clinoptilolite zeolite. Available exclusively through AquaZeo.

Kit comes complete with (1) set of zeolite 4.5″ x 20″ cartridges, your choice of a third cartridge, mounting bracket and wrench.

• Installed dimensions: 34″ h x 24″ w x 8″ d
• Easy wall mount after pressure tank
• 1 positive (+) 20″ x 4.5″ zeolite cartridge
• 1 negative (-) 20″ x 4.5″ zeolite cartridge
• 1 pre or post sediment 20” x 4.5” cartridge
• Excellent flow rate (10 gpm @ 60 psi)
• 1″ NPT service portals
• Pressure rating: 120 psi
• 6 pressure gauges (one each inlet/outlet per cartridge)
• 3 drain kits
• Working temperature range: min: 39.2 degrees F, max: degrees 113 F

Choose your third cartridge:

• Pre-Filter Sediment Cartridge: Captures particles from 1 to 25 microns. Keeps sediment from the pressure tank from plugging up cartridge screens. Learn more
• Post-Filter Sediment Cartridge: Captures fines or dust from our cartridges, down to ½ micron. Keeps sediment from flowing into your house service system.
• Positive (+) Zeolite Cartridge: Add a second positive cartridge if you have higher levels of chlorine, fluoride, sodium, sulfur or PFAA’s — common with municipal water.
• Negative (+) Zeolite Cartridge: Add a second negative cartridge if you have hard water/minerals. Traps calcium, magnesium, iron and manganese. Diminishes arsenic, uranium and radon to name a few.
